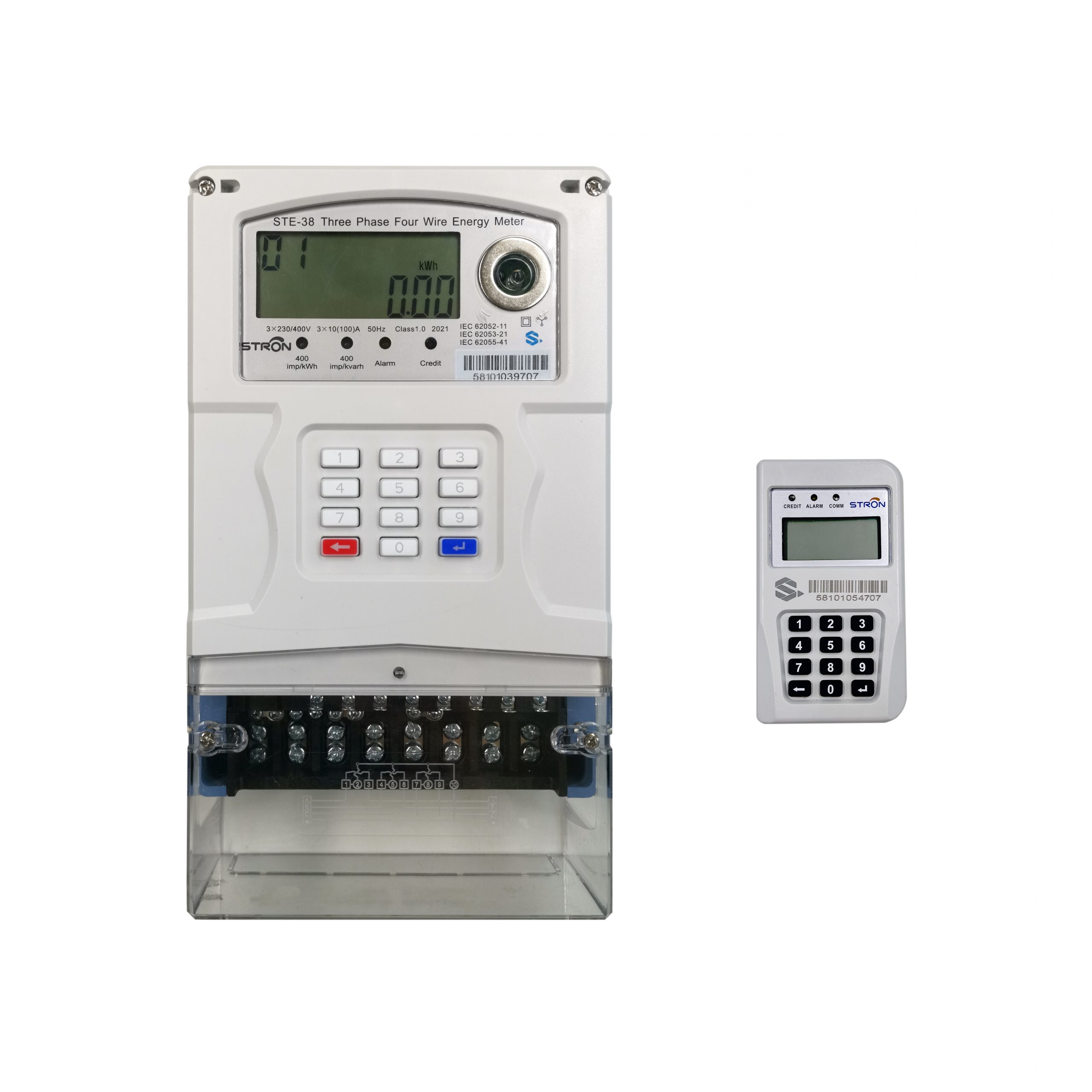

Stron STE38-S split three phase electricity meter is composed of a prepaid keypad three phase electricity meter and a separate customer interface unit, has RF wireless communication, anti-tamper function and real-time clock. Customaztion is available.
| Nominal Voltage | 3×230V |
| Working Voltage Range | 70%~120%Un |
| Nominal Frequency | 50-60Hz |
| Basic Current (Ib) | 10A |
| Maximum Current (Imax) | 100A |
| Starting Current (Ist) | 30mA |
| Active Energy Constant | 400imp/kWh |
| Active Energy Accuracy | Class 1.0 |
| Reactive Energy Accuracy | Class 2.0 |
| Power Consumption in Voltage Circuit | <2W <8VA |
| Power Consumption in Current Circuit | <1VA |
| Operation Temperature Range | -25℃-70℃ |
| Storage Temperature Range | -40℃-85℃ |

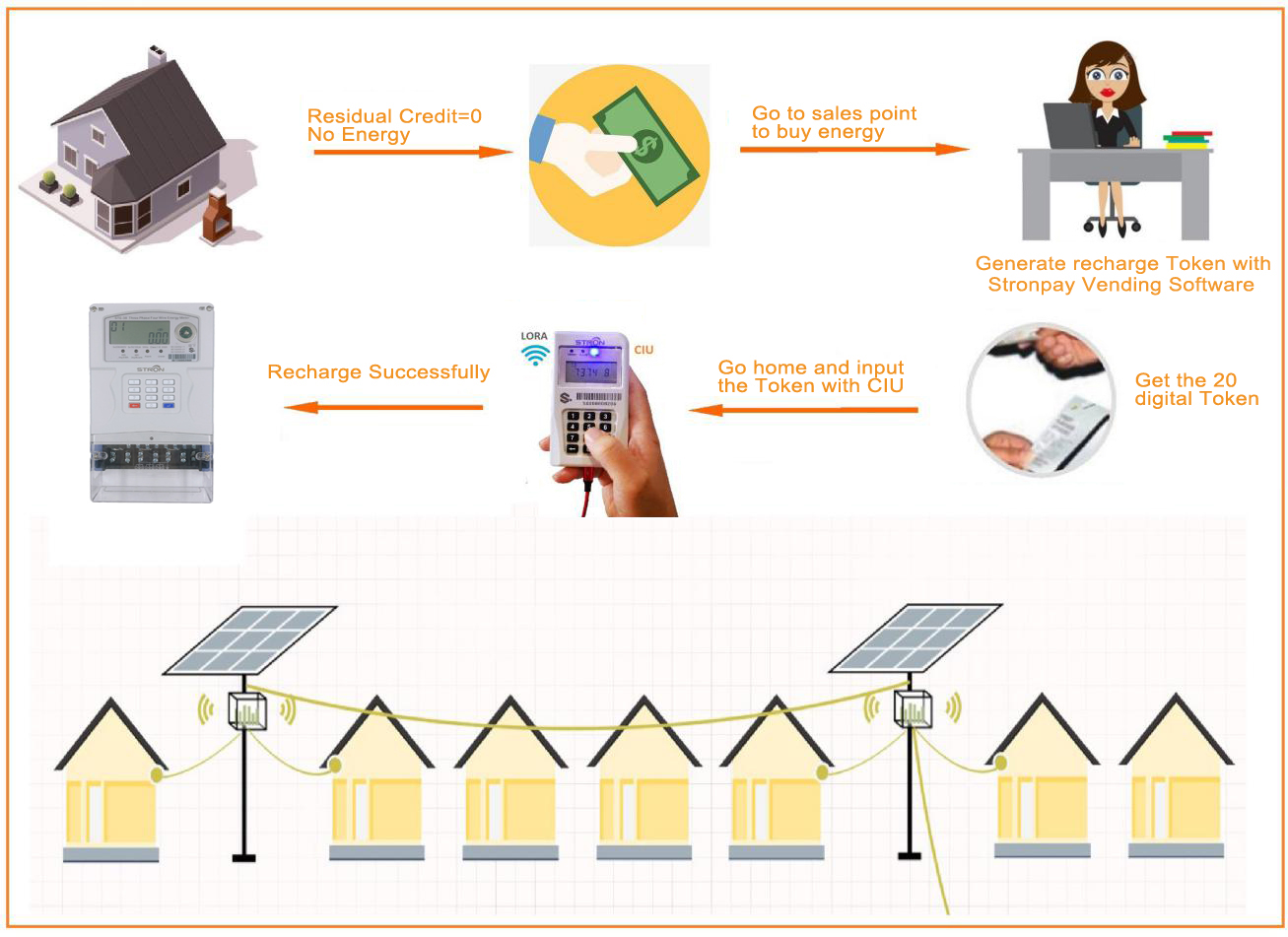

How to recharge?
We will provide vending software account for customers, they can set up selling point to manage the software and charging for user. The software will generate 20-digit token, which compliance with STS standard, users input the token by Customer Interface Unit, no need to open the meter box.

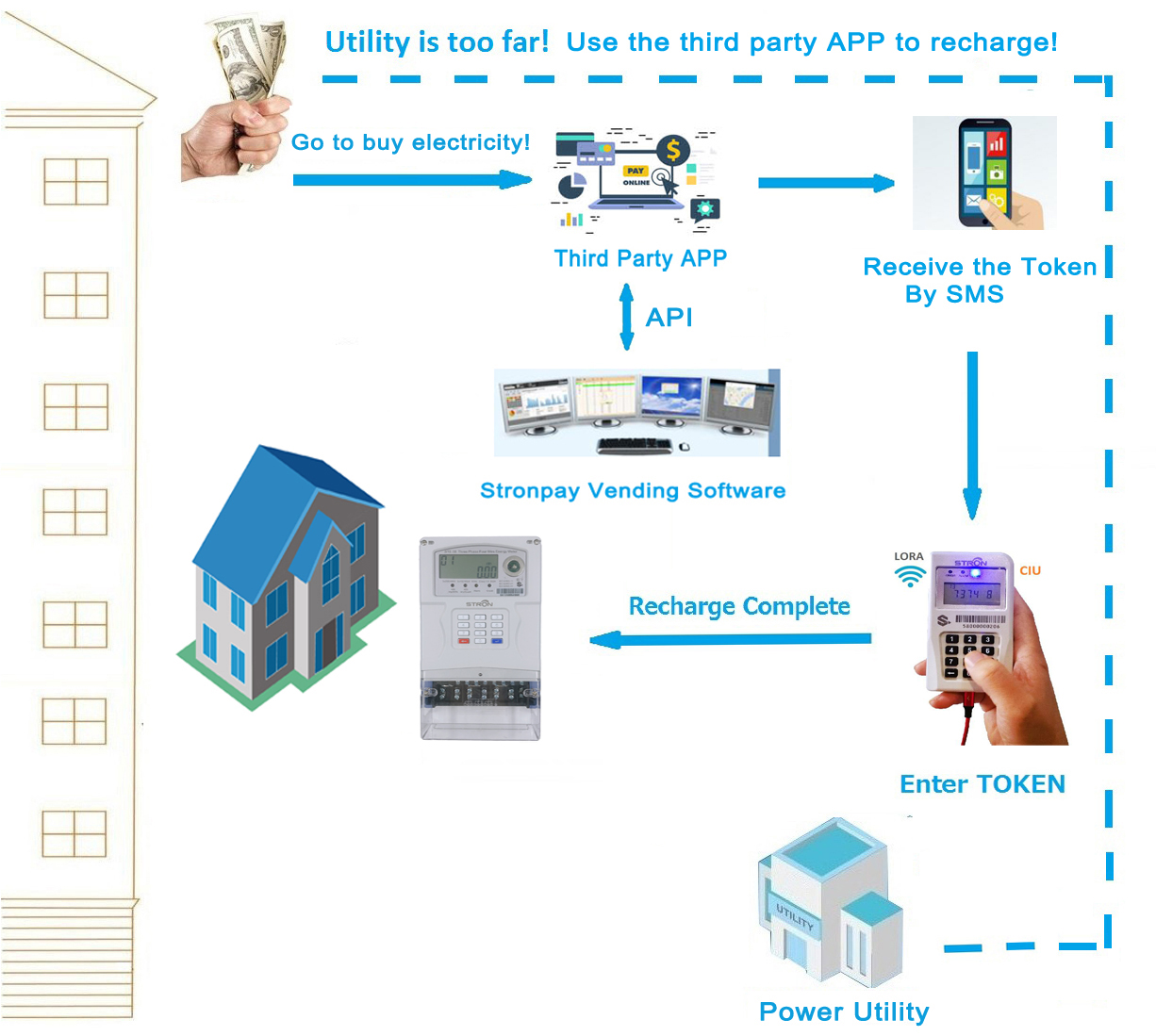

How to recharge remotely?
API is available, we can provide API account to integrate local payment app, users don’t need to find selling point, only with their mobile phone can buy electricity and get the token.
